5t and 10t Single Girder Bridge Crane For Sale to Uzbekistan

2020-11-25|Case Project

Parameters:

  • Product name: Single girder bridge crane LD model
  • Load capacity: 10t and 5t
  • Span of crane: 22.5 meters
  • Lift height: 7 meters
  • Power supply voltage:380v/50hz/3ph
  • Control way: Pendent control
  • Application: indoor

Single girder bridge crane is our crane for almost any application. Even in buildings with low ceilings effective material flow solutions can be achieved for loads of up to 16 t and spans of up to 39 m. Normally safety clearances below ceilings are not required for single girder bridge cranes within this load range. This allows the optimal use of existing space or can save additional building height costs.

Soon after 25 days since we received advance payment, the production finished, we cooperated with customer's ship forward agency to finish the loading.

Main beam

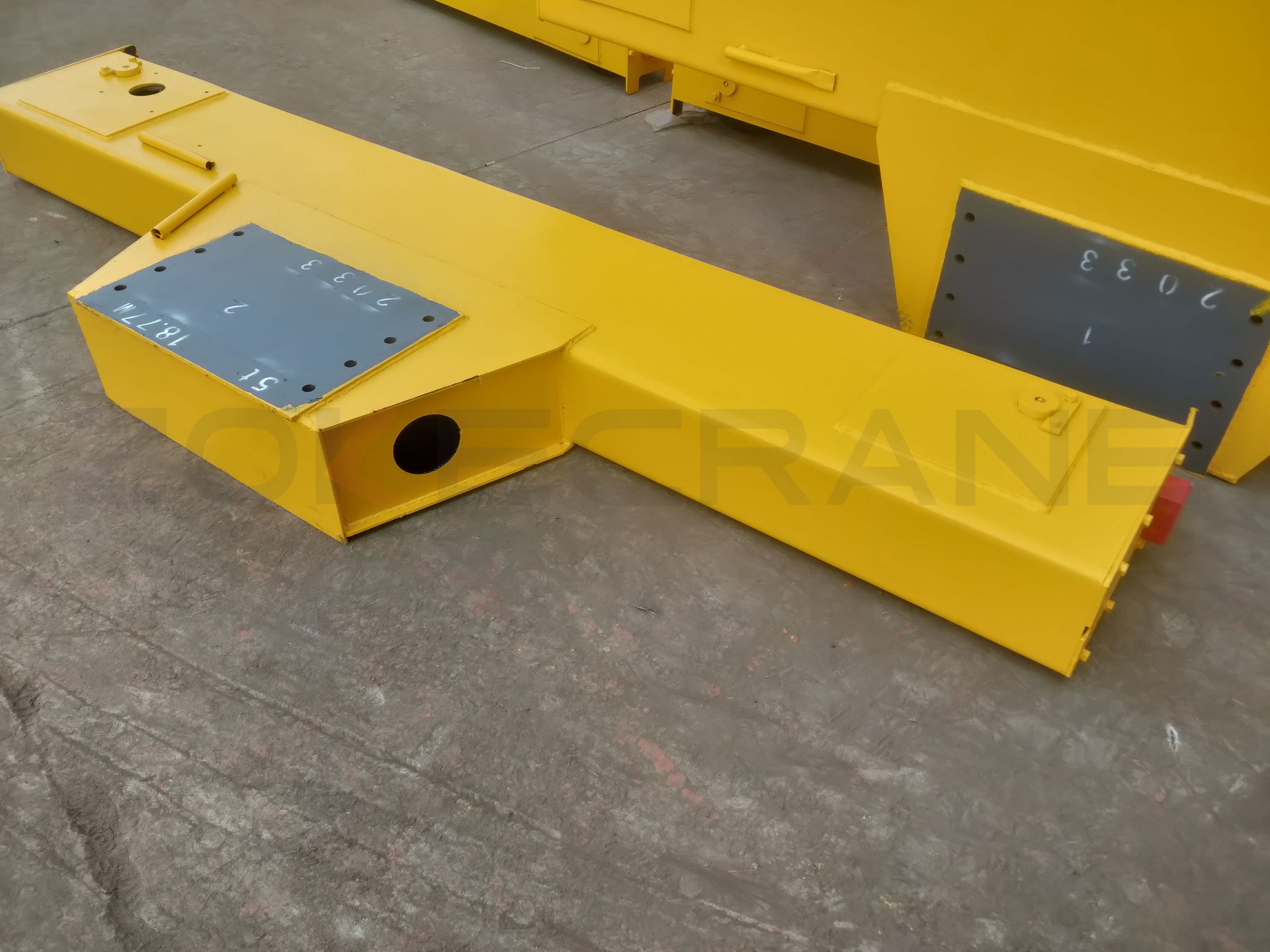

End carriage

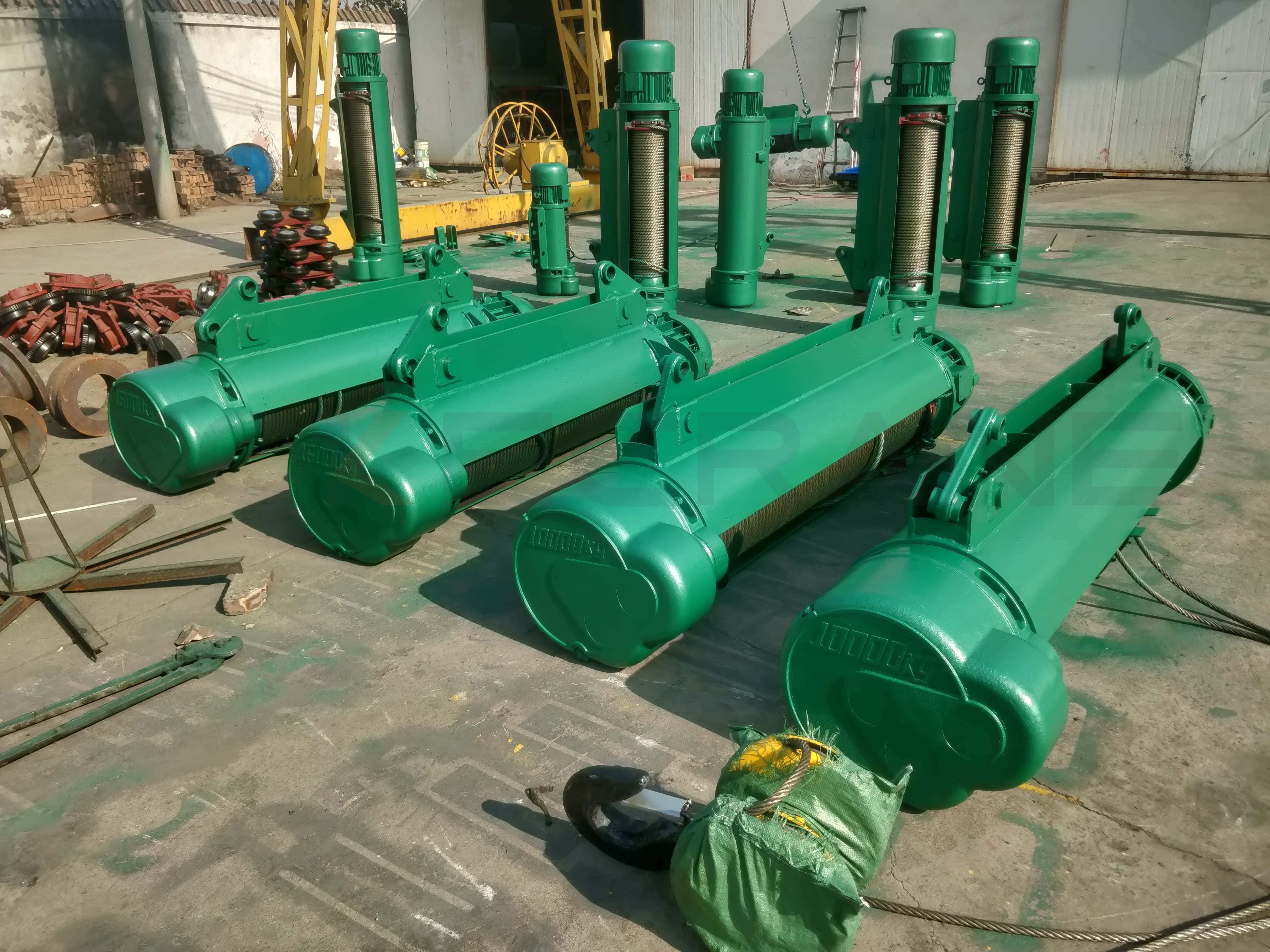

Wire rope hoist

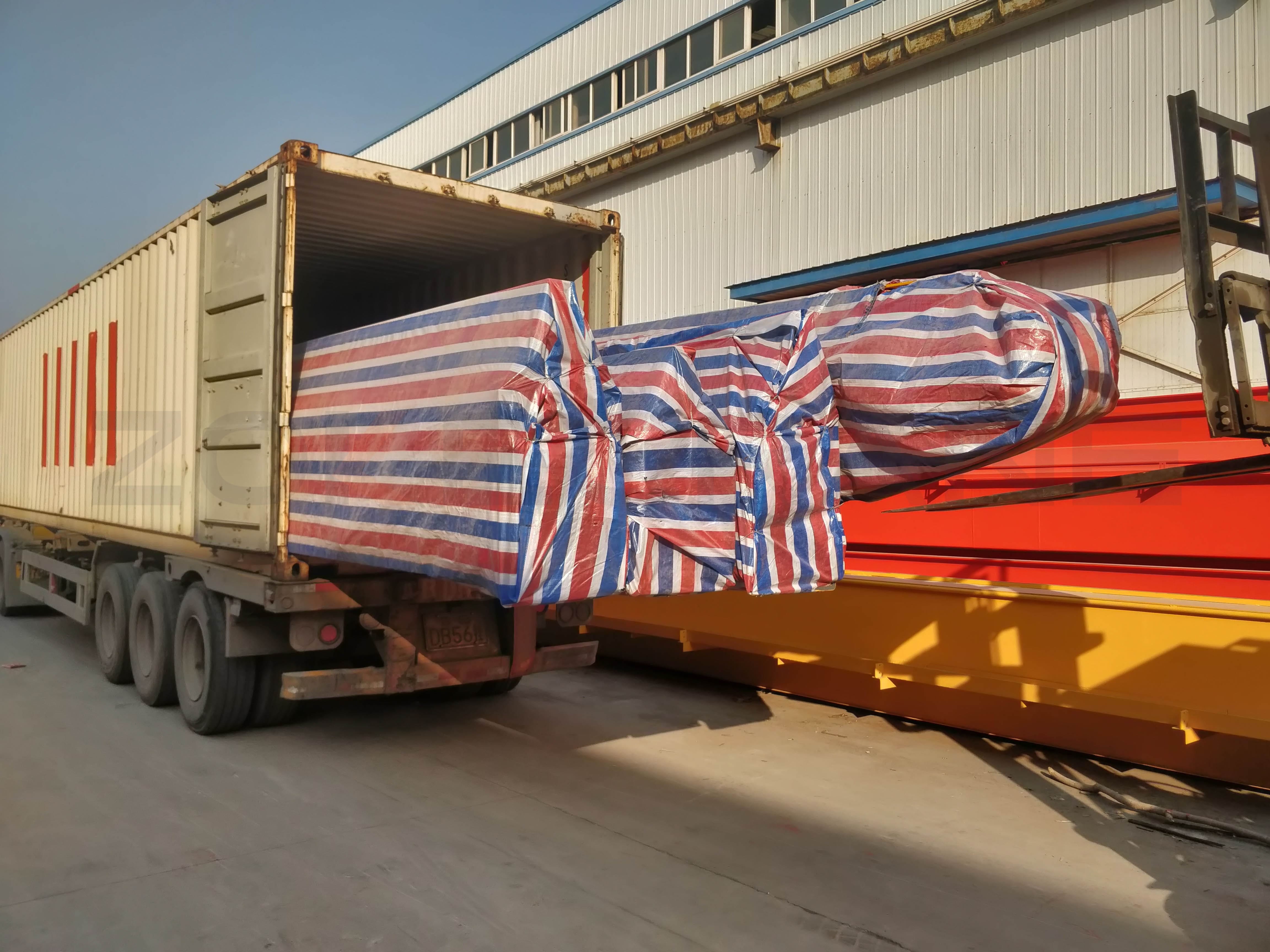

Loading
