Double Rail Hoist Trolley Test For New Zealand Customer

2021-04-20|Case Project

Parameters:

  • Product name: European type double rail hoist trolley
  • Load capacity: 10t
  • Lift height: 9m
  • Rail gauge:1130mm
  • Tread of wheel: 50*50 square bar
  • Quantity:1 set

Hoist trolleys are used on I-beams and W-beams to move the hoist horizontally. This is accomplished by providing the trolleys with both a flat and tapered wheel. This allows the same trolley to work on both types of I-beams. They can be operated manually with a push trolley, gear operated with a hand chain, or a motor driven trolley. Motorized trolleys can be powered by either electricity or air power. Beam clamps are used to secure a hoist in a fixed position on an I-beam or W-Beam to provide an anchor point to attach a hoist. Both trolleys and beam clamps are designed to lift the load vertically and not have any side load added. Lifting beam clamps and hoist trolleys are offered in a wide variety of sizes from 1 ton to 25 ton, with the 2 ton, 3 ton and 5 ton options being the most common.

This hoist trolley is customized according to customer needs.

Due to the rail guage is customized as 1130mm according to customer's crane, and wheel tread size need to match with square bar 50*50. Customer demands SGS test on the cargo. SGS team made inspection, measurement, load test and etc. The test video sent to customer, he is very satisfied.

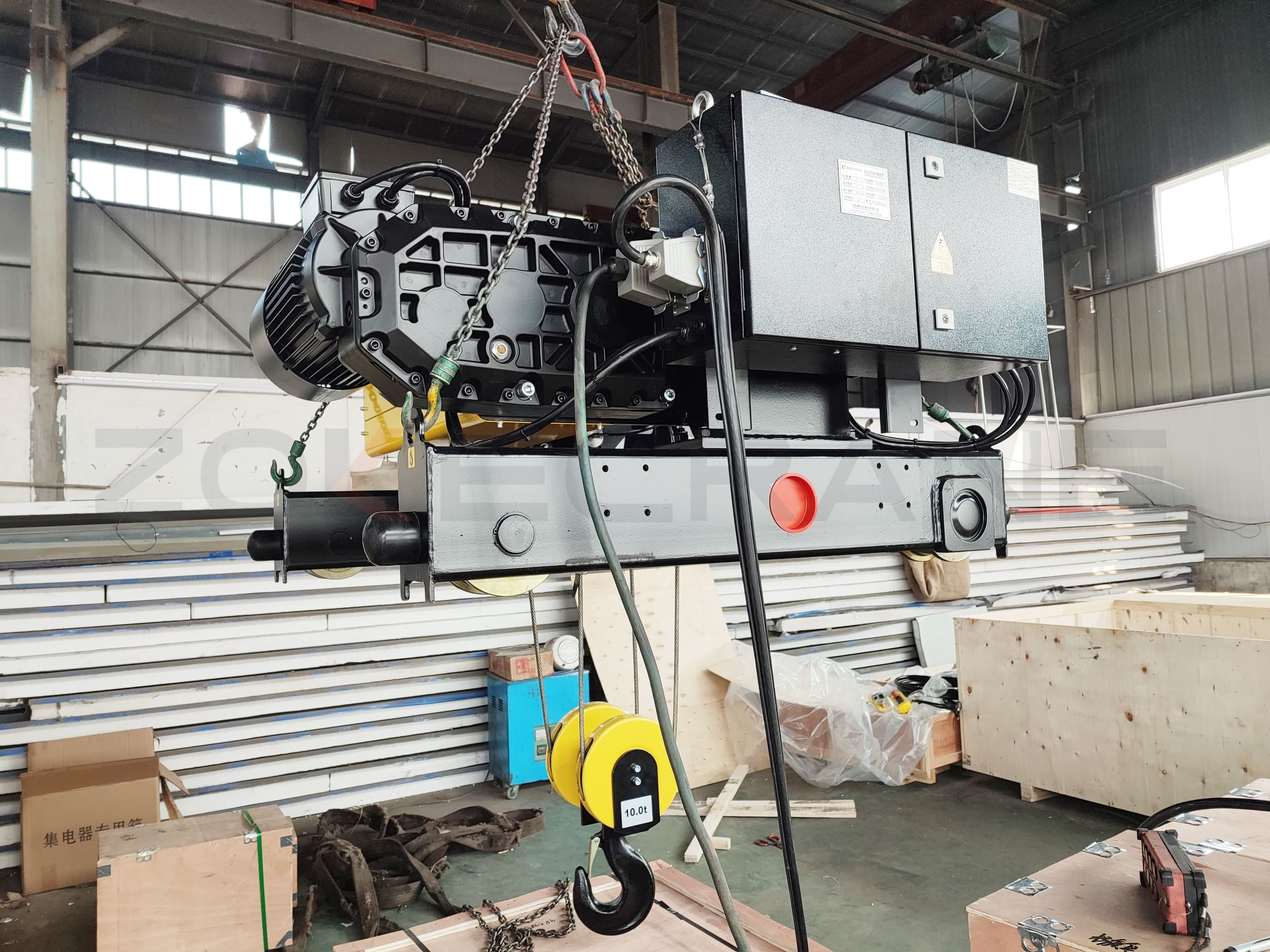

Lift test

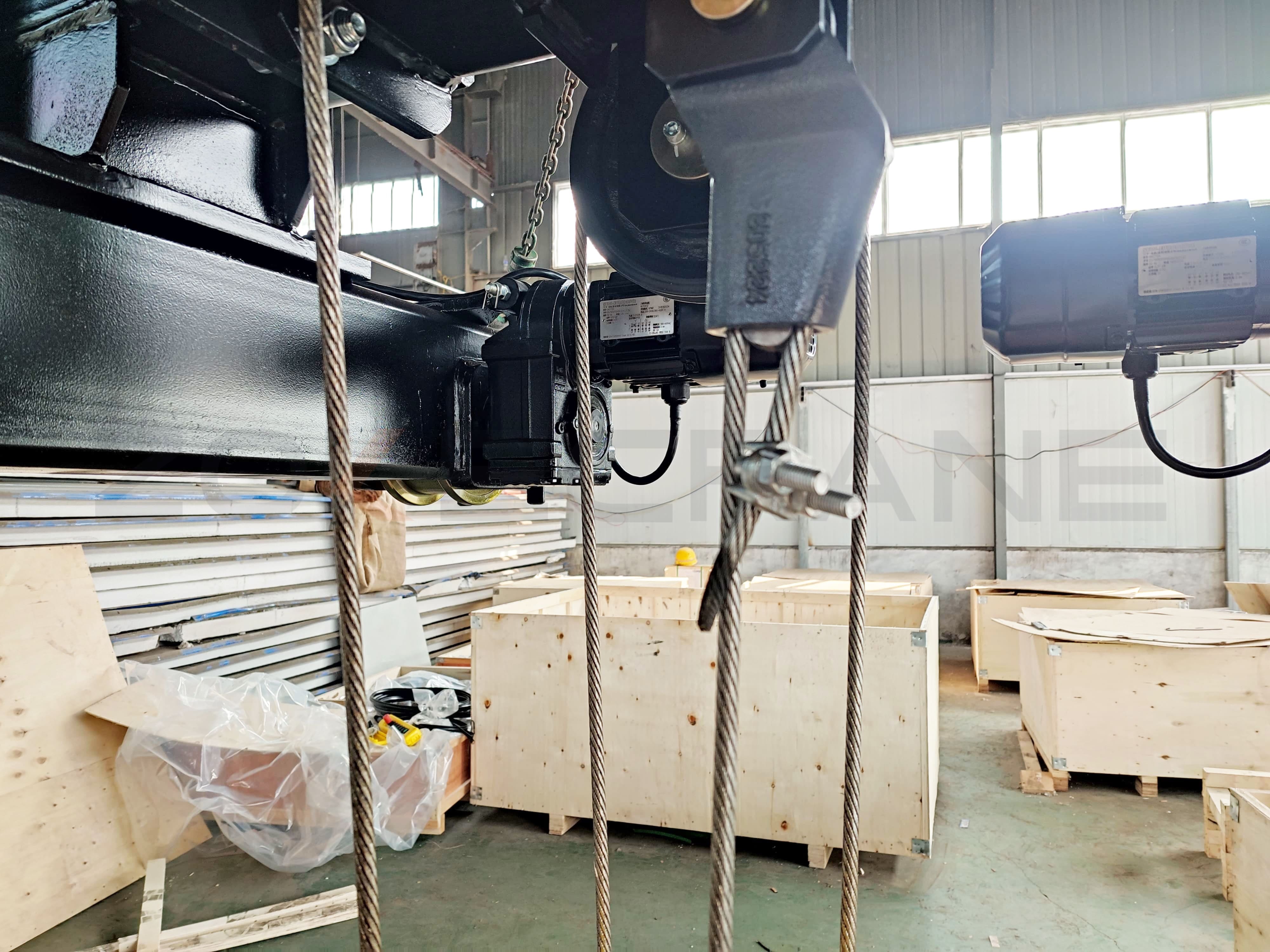

Limit switch for lift

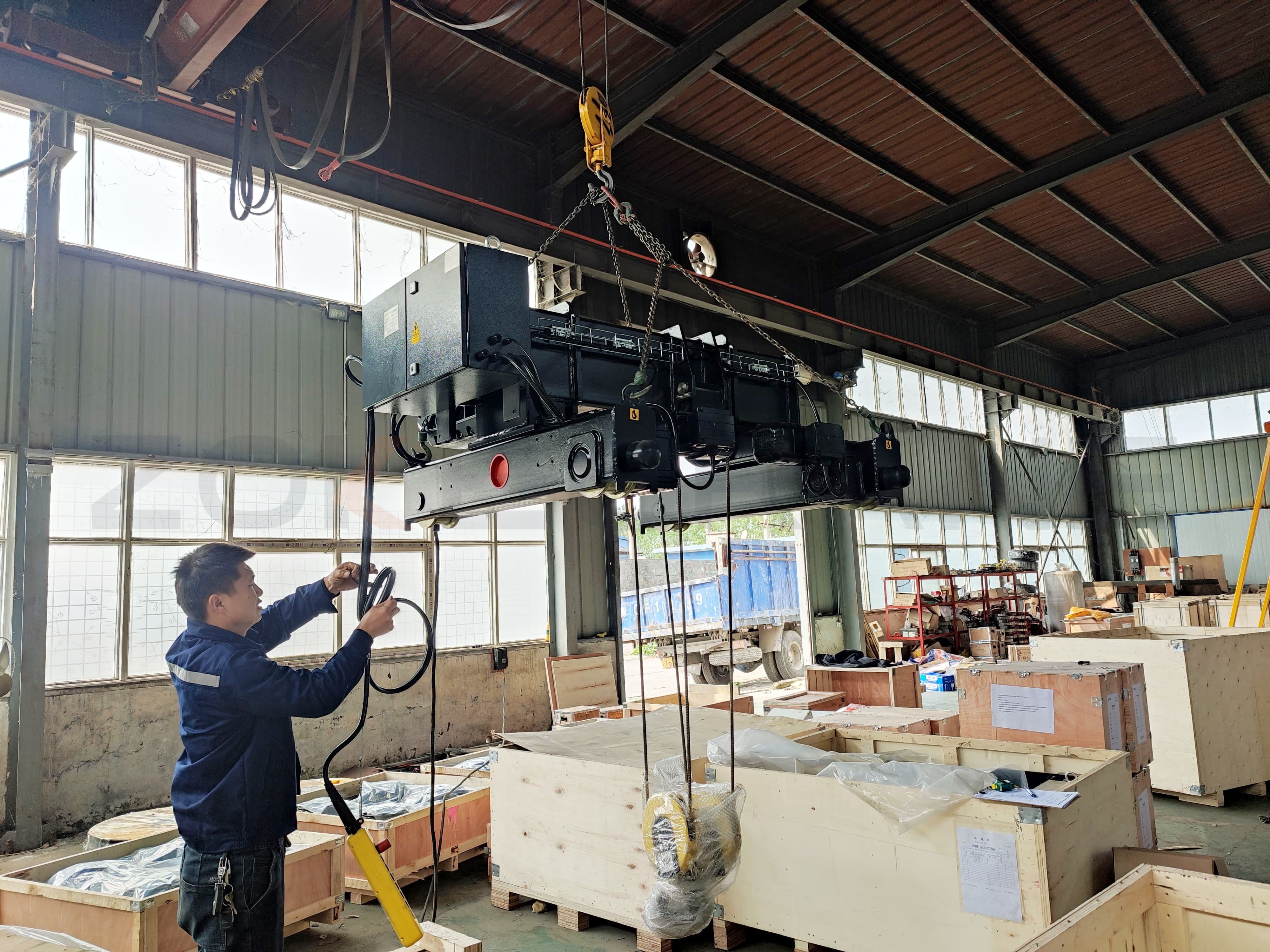

Test on hoist
