Overhead Crane Rope Guide Replacement

2021-09-02|Product News

Single girder overhead travelling crane on the rope guide, also known as rope row device, is a relatively simple damage to the attachment. However, many customers do not know how to replace the rope guide. This article briefly introduced the replacement guide rope device approach and process, for your reference.

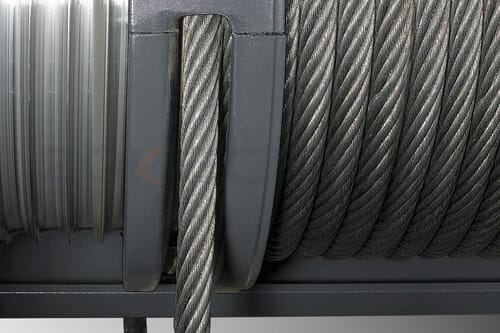

crane wire rope guide

Single girder overhead travelling crane replacement guide rope device is necessary with matching. Some manufacturers produce can not use the traditional rope guide. Please pay attention to communicate with us when you buy. When replacing the rope guide, should first cut off the power, remove the wire rope. After removing the hexagonal screw of the rope guide, you can take down the rope guide along the wire rope. During this period, it is necessary to pay attention to the wire rope into the rope groove before installing the rope guide, so that the wire rope does not enter the groove, there may again crush the rope guide.

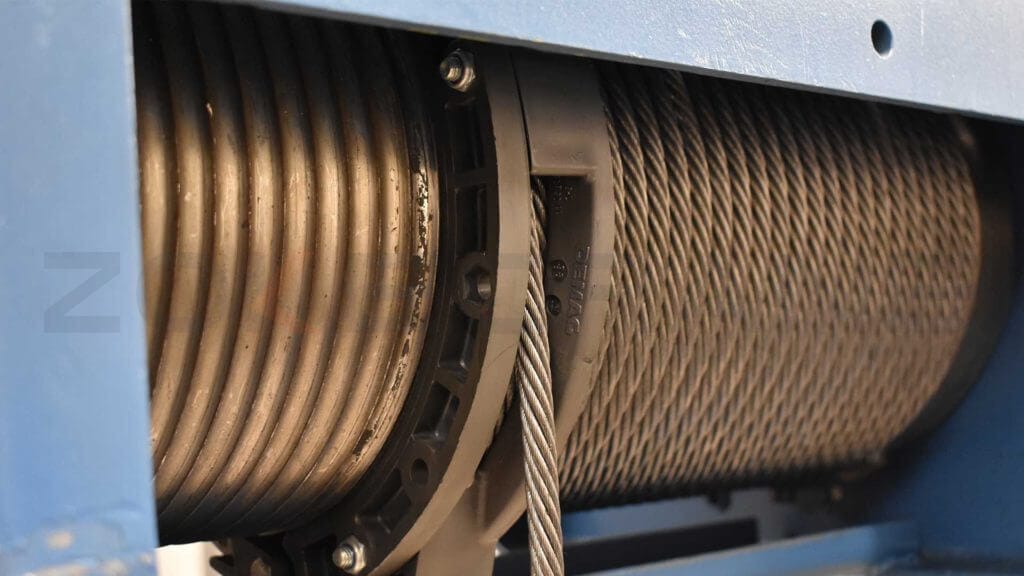

crane wire rope guide

Single girder overhead travelling crane accessories guide rope device method is as follows.

First remove the fixed screws fixed in the rope guide; open the rope guide, the block in the rope guide on the side facing outward, the rope guide into the; wire rope head into the rope guide, adjust the rope guide, straighten out the winding order of the wire rope; wire rope head into the fixed pile, wedge it with iron wedge; fixed rope guide, install all the fixed screws of the rope guide; start, adjust the rope guide. This is to ensure that the upper and lower rope guide can accurately cut off the fire source, do not let the wire rope relax the good position; single girder overhead crane guide rope device device is simple, the device is strong.

ARTICLE TAGS:crane rope guide,overhead crane
