Project Of 10 Ton Single Girder Gantry Crane Export to Mali

2022-04-02|Case Project

Crane basis parameters

  • Model: MH type single girder gantry crane (indoor usage/low headroom)
  • Capacity: 10 ton
  • Span: 9.5m
  • Lifting height: 4m
  • Lifting speed: 7m/min
  • Cross traveling speed: 20m/min
  • Long traveling speed: 20m/min
  • Main electrical component: Schneider
  • Crane work duty: ISO A3
  • Control way: pendent control
  • Hoist model: low headroom type hoist
  • Workshop clearance height: 5.6 meters
  • Long travel length: 25m

Project Brief

This client see our other project on Facebook, and leave message on our Facebook Page, saying that they need workshop crane. After contacting client, we suggest the indoor type gantry crane.


  1. There is no strong steel pillars in their workshop and if adopt overhead crane with steel pillars, the total cost shall be higher much than gantry crane.
  2. Gantry crane don't need extra steel pillar, directly run on the rail (mounted on the ground).

Besides, their workshop height is low, but client want a higher lift height. We suggest our low headroom type electric hoist, whose self height is smaller (lift height will be higher).

Our professional service and suggestion attract client's attention. Even if our price is higher than his another crane supplier, he finally place order to us.

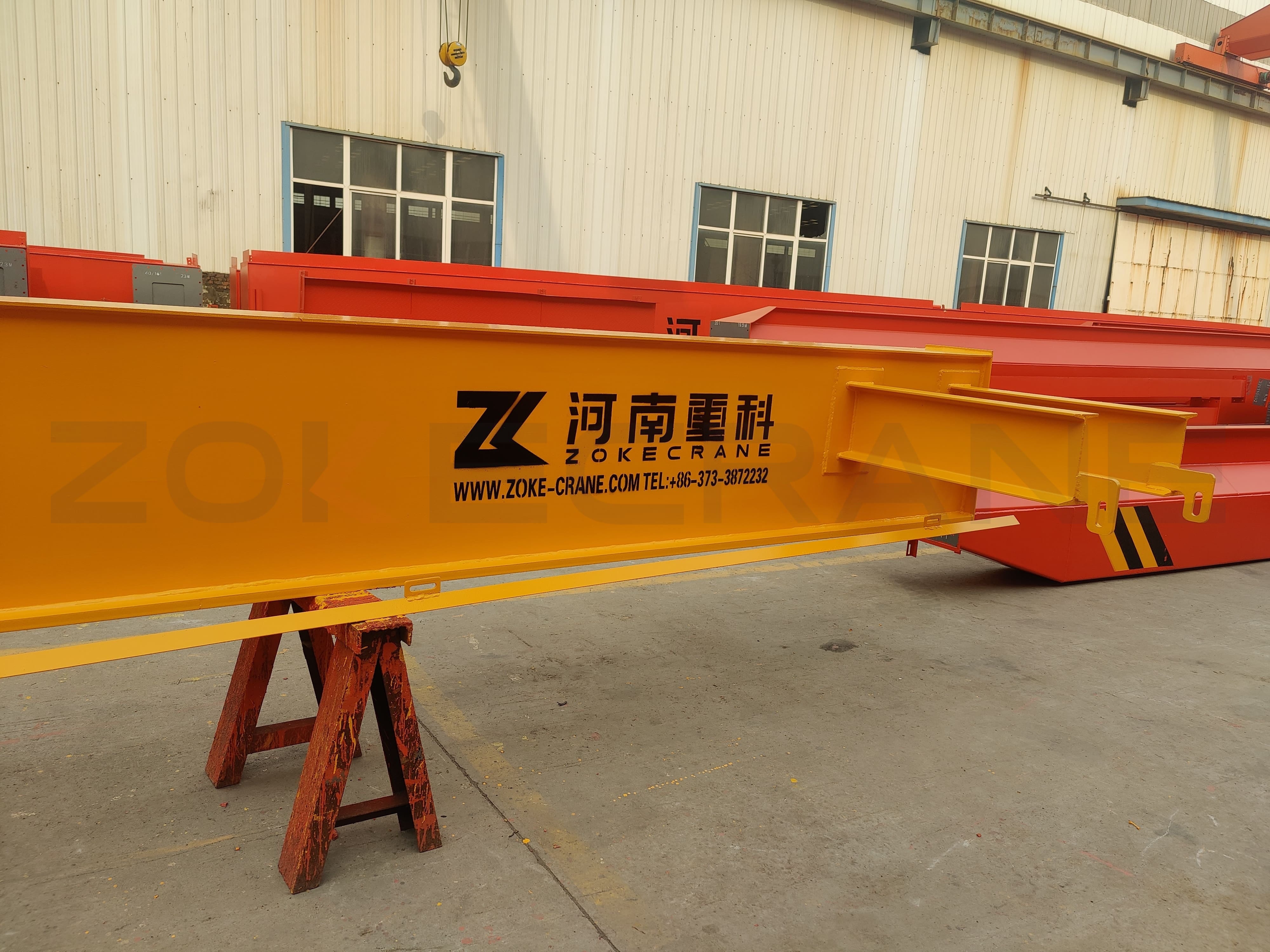

crane beam

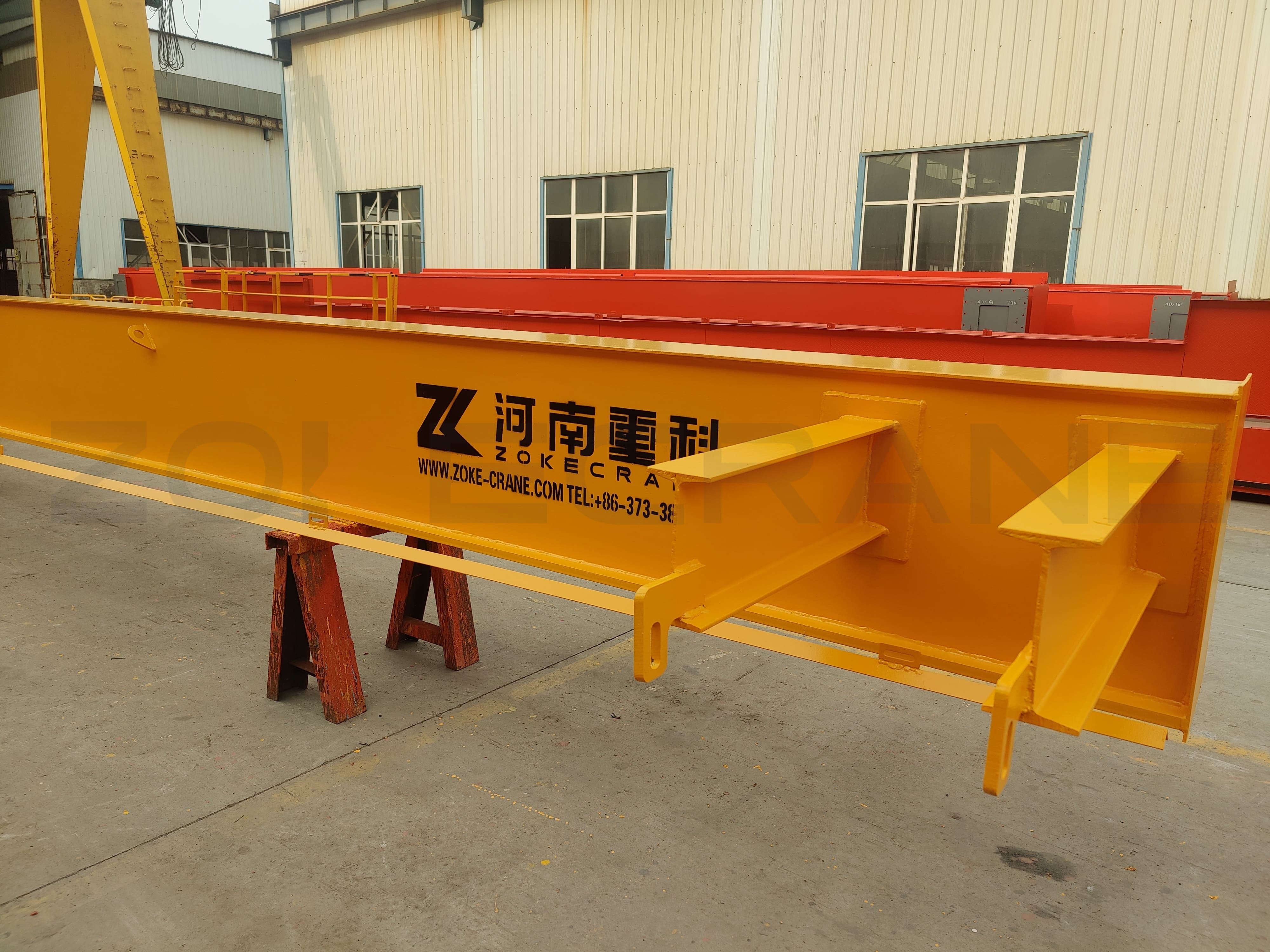

crane beam

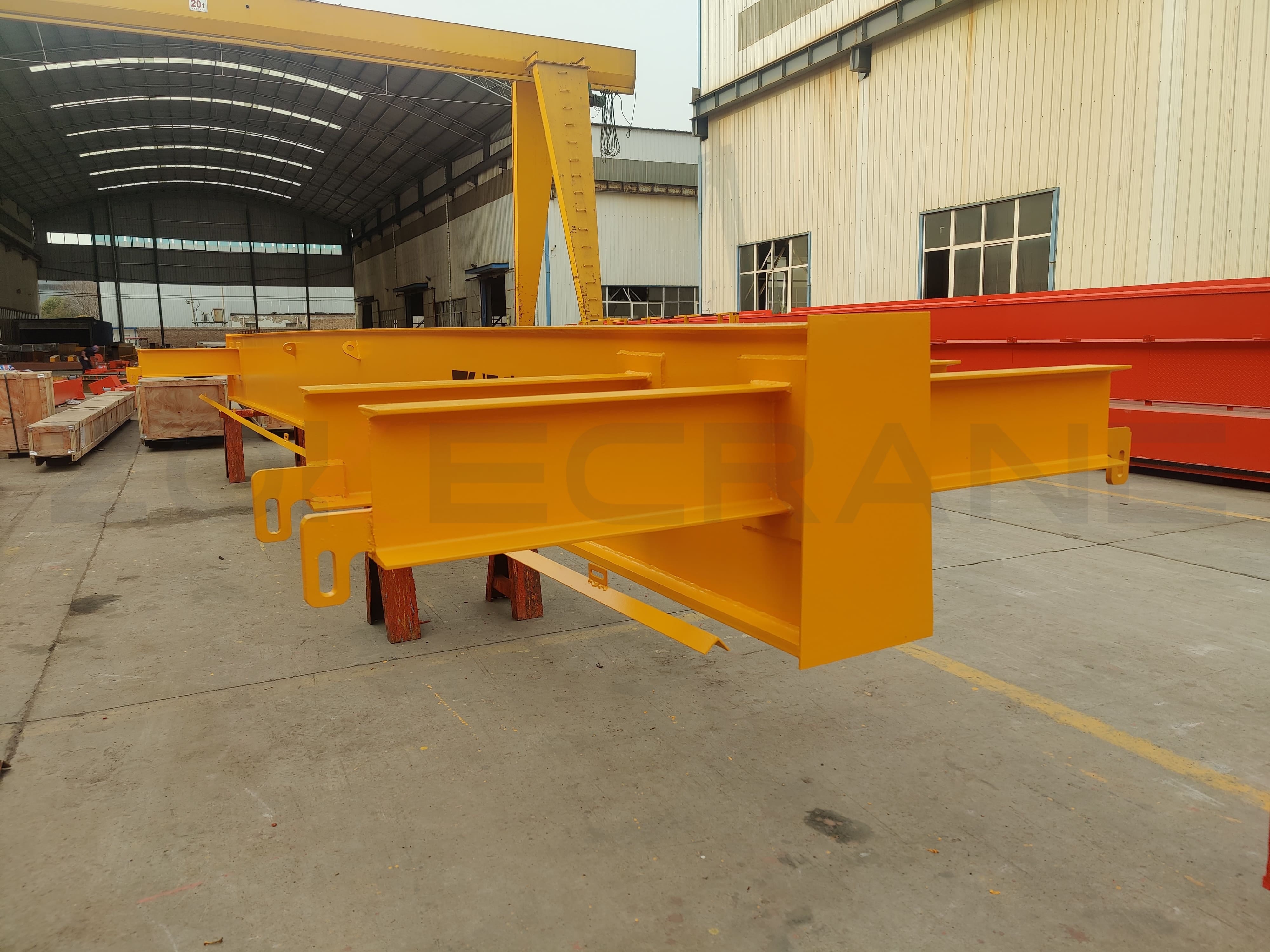

crane beam

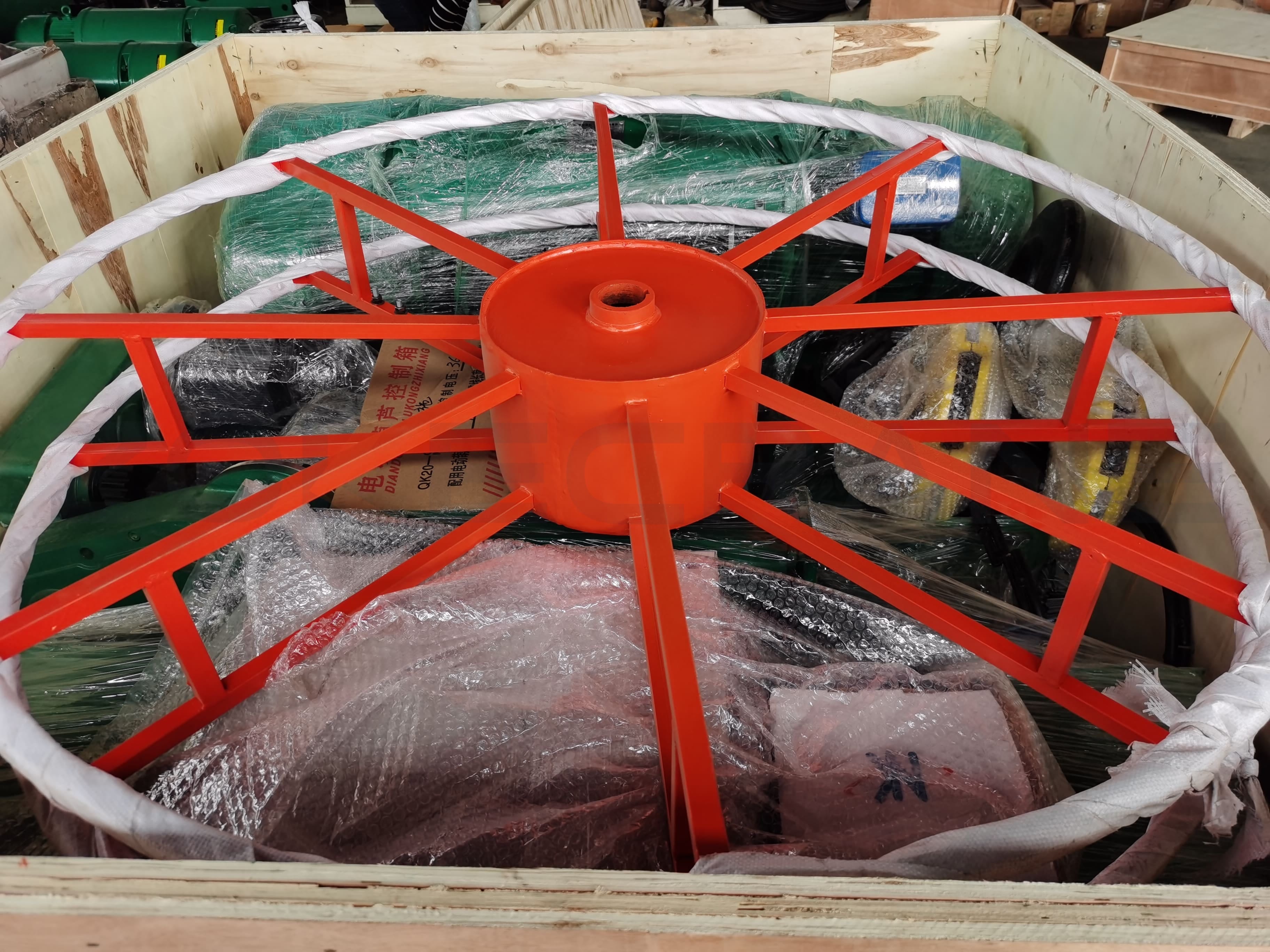

cable reel

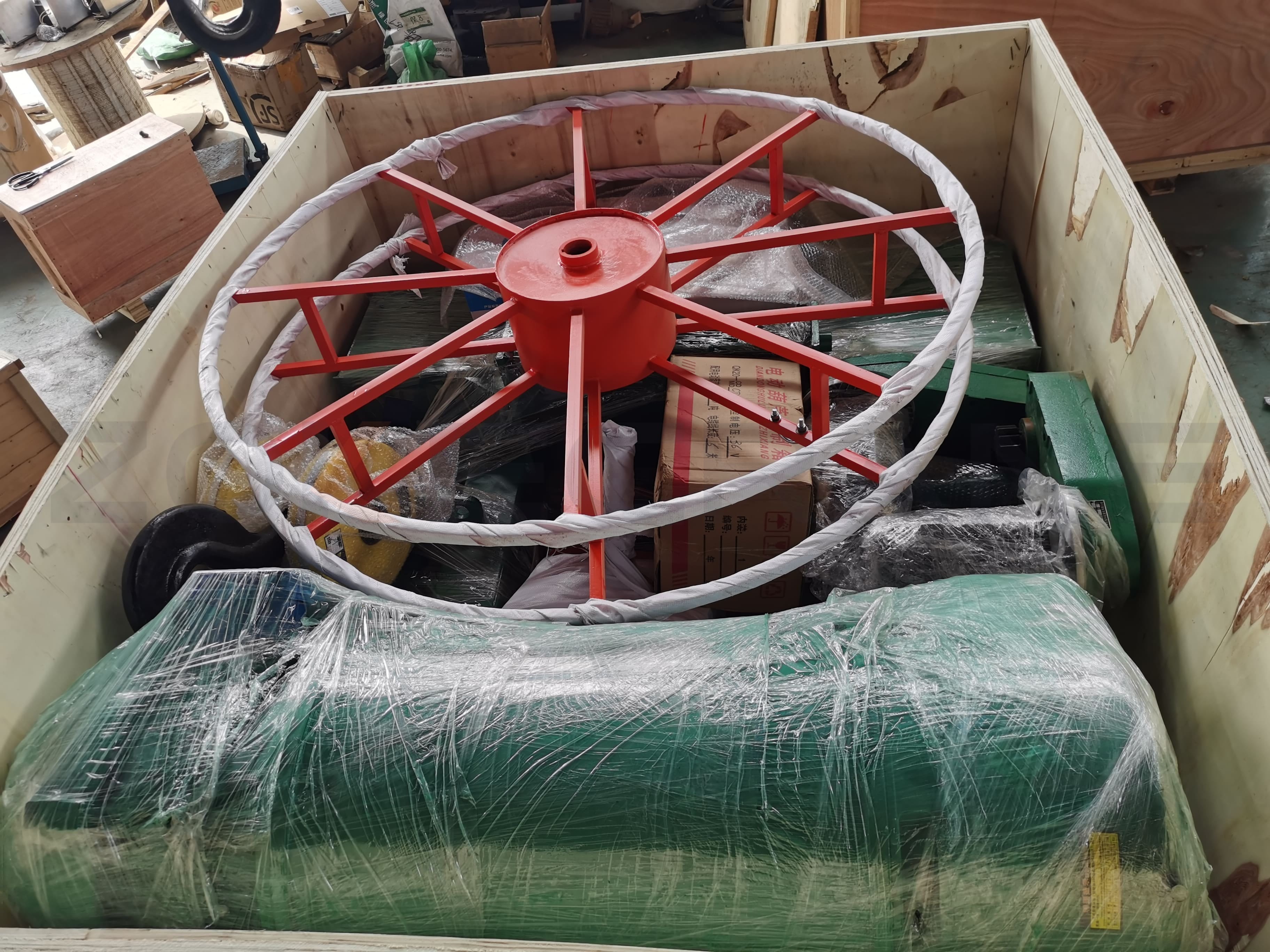

electric hoist

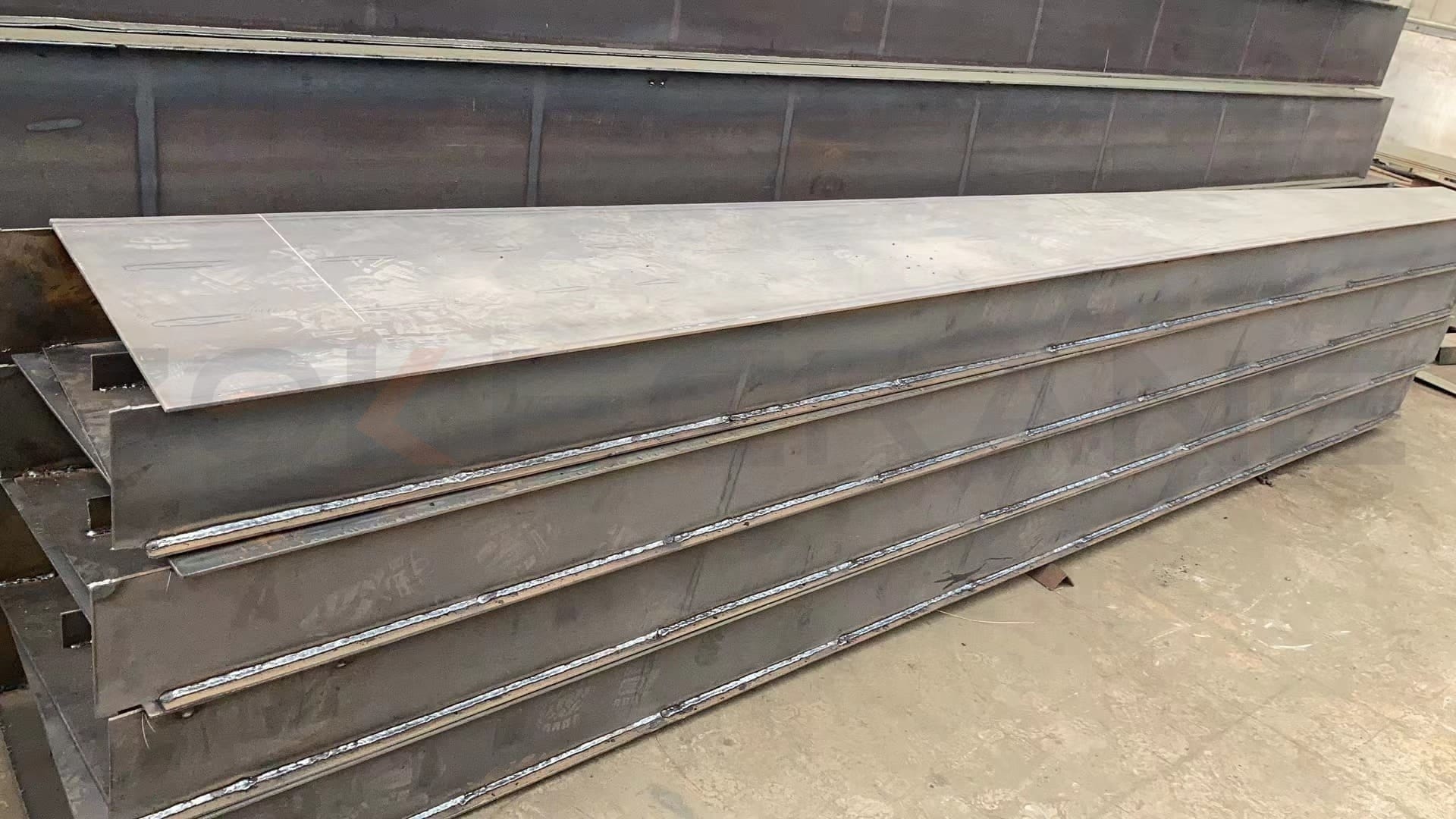

support leg
